插拔式連接器
額定電流: 5 A
額定電壓: 150 V
使用線徑: 30-20 AWG
間距: 2.54 mm
接線方式: 直插式彈簧連接

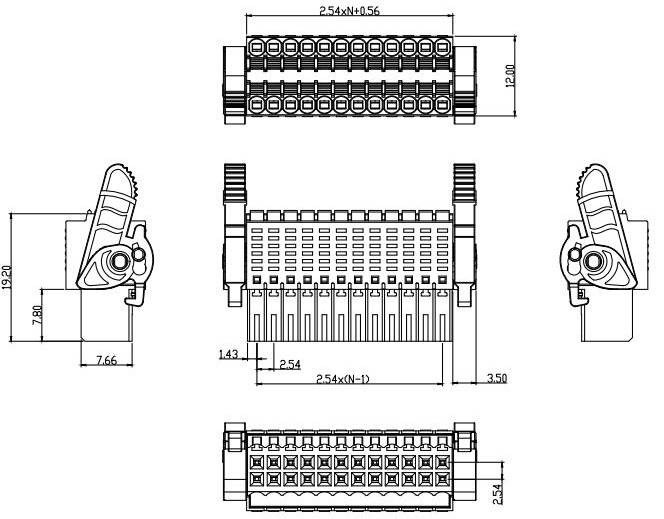

技術參數設計圖紙
| 技術數據-UL/CUL | |||
| 等級 Use Group | B | C | D |
| 額定電壓 Rate Voltage [V] | 150 | - | - |
| 額定電流 Rated Current [A] | 5 | - | - |
| 接線范圍 Wire Range [AWG] | 30-20 | ||
| 耐電壓 Dielectric Voltage-Withstand | 1.3KV | ||
| 技術參數-IEC | |||
| 過電壓類別 Overvoltage Category | III | III | II |
| 污染等級 Contamination Class | 3 | 2 | 2 |
| 額定電壓 Rated Voltage [V] | 100 | 160 | 320 |
| 額定電流 Rated Current [A] | 6 | 6 | 6 |
| 額定沖擊電壓 Impulse withstand voltage [KV] | 1.5 | 2.5 | 2.5 |
| 導線截面積[硬/柔] Conductor cross section [mm2] | 0.2-0.5 | ||
| 材料 Material | |||
| 絕緣材料 Insulation Material | PA66 | ||
| 阻燃等級 Flame relardant rating | UL94V-0 | ||
| 導體材料 Conductor Material | Copper alloy | ||
| 導體表面鍍層 Plating of conductor surface | Sn plated | ||
| 一般參數 Other Data | |||
| 間距/極數 Pitch/Poles [mm]/[P] | 2.54/2*2-2*24 | ||
| 剝線長度 Stripping Length [mm] | 7~8 | ||
| 螺絲/扭矩 Screw/Torque(Max)[N.m] | / | ||
| 工作溫度 Operating temperature [℃] | -40~+105 | ||
| 焊錫溫度 Soldering temperature | / | ||
| 引針尺寸 Pin dimensions [mm] | / | ||
| PCB板孔徑 PCB Hole Diameter [mm] | / | ||
